Function Introduction
    Java-V3.4.8-trial is an interface based on JAVA to accomplish SMS function. It supports the cross-platform SMS, and applies to the operating systems like windows XP, 2000, 2003 and Linux. It’s an ideal tool to integrate business systems with SMS systems.

    Function
    1、 At present, it mainly supports Wavecom series and Siemens series like M1206B, M1306B, WMOD2 Wismo, MC35i, M35, M50, M65, C45, TC35i and C65.
    2、 Support both PDU and TEXT protocol.
    3、 Support both sending and receiving of SMS.
    4、 Support the coded formats like 7bit, 8bit and UCS2 (Unicode).
    5、 Support super long messages.
    6、 Support flash SMS.
    7、 Support WAP PUSH.
    8、 Support status reports.
    9、 Support the status display of GSM Modems.

Product features
    1、 It can support more than one GSM modem at the same time, whether different models or the same one, and it can send SMS via automatic load balancing in these modems.
    2、 Support the priority setting of SMS.
    3、 Support synchronous and asynchronous receiving via the SMS queue.

Preparation before installation
    Download JDK1.6 or the newer version. Make sure JDK has been installed correctly and can be run under any directory. If the operating system is Linux, please confirm JDK1.6 or the newer version has been installed correctly and the PATH environment variable has been set.

File instruction

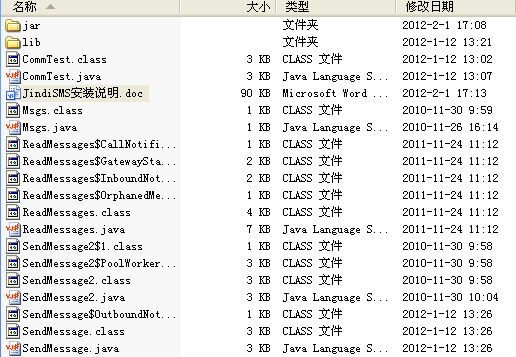

    Download java-V3.4.8-trial compressed package and unzip it, there will be files and directories as shown in the figure:


    Jar includes all required jar documents when running.
    jdsmsserver-3.4.6jar：API used for Jindi SMS development calling
    commons-net-1.4.1.jar：net API
    log4j-1.2.15.jar ：log API
    RXTXcomm.jar ： serial API
    Lib directory ：
    Jdk accesses to the serial driver, and choose according to your operating system
    Zip directory：
    CommTest.java：serial connection test of GSM modem. Mainly check the serial port number and baud rate.
    ReadMessages.java：read all received messages in the SIM card.
    SendMessage.java：send messages.

Installation steps of JindiSMS on the Windows system
    Jdsmsserver-3.4.6-trial.zip can be unzipped under any directory. Take the directory C:\ for example.
    1、 Copy all files under the jar directory to jdk1.6\jre\lib\ext.
    2、 Copy the file rxtxSerial.dll corresponding to WIN or LINUX under the lib directory to jdk1.6\jre\bin.
    3、 Copy javax.comm.properties under the lib directory to jdk1.6\jre\lib.
    4、 Set the PATH path in the environment variable and add to jdk1.6\bin.

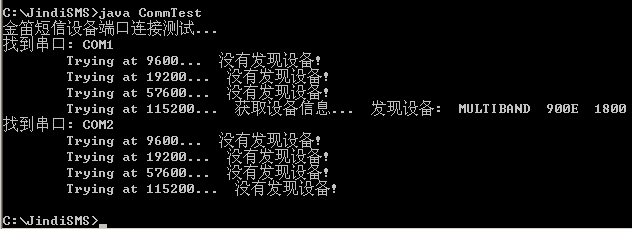

    5、 Run on the port and test the program.

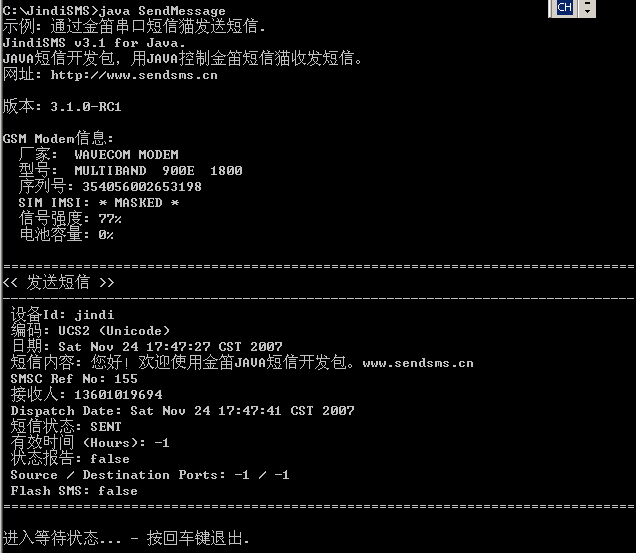

Run the sending example of SMS

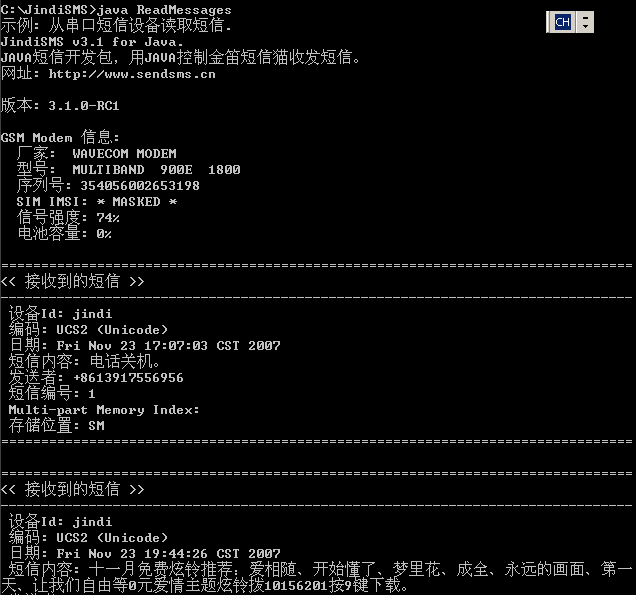

Run the receiving example of SMS
Installation steps of java-V3.4.6-tria on the linux system
     Copy the file LibrxtxSerial.so corresponding to 32-bit or 64-bit operating system under the lib directory to jdk1.6\jre\lib\i386（32-bit） or jdk1.6\jre\lib\amd64(64-bit). The other steps refer to installation steps on the windows system.

    winxp/ win2000/ 32-bit win2003/ 64-bit win2003/ 32-bit win2008/ 64-bit win2008/ win7 Redhat/ CentOS/ Ubuntu
