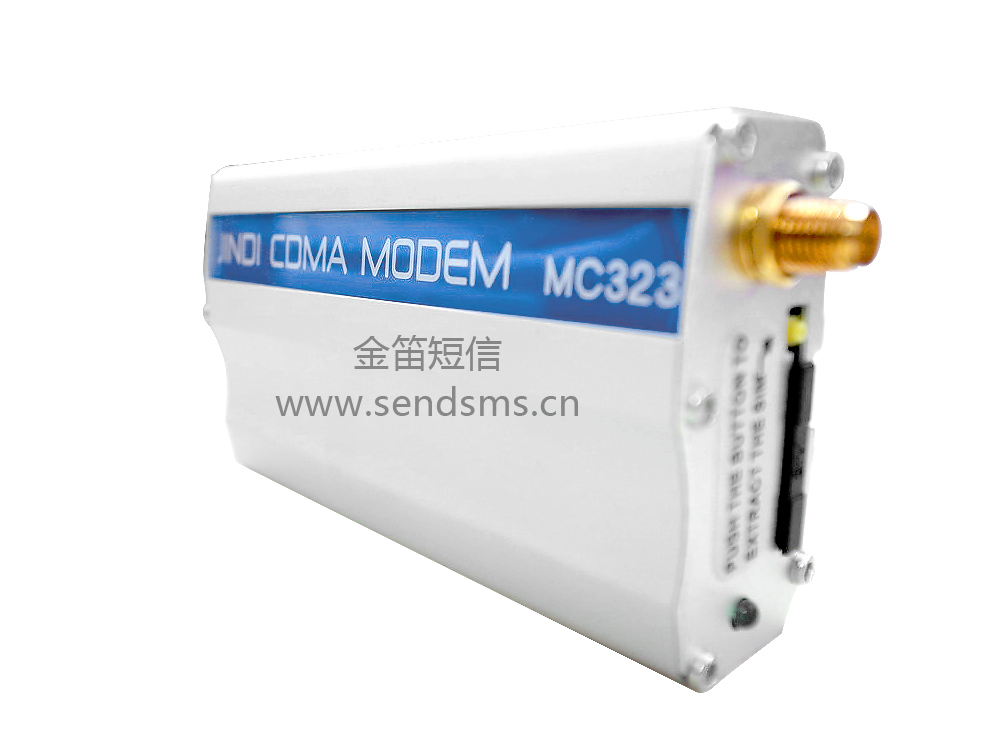

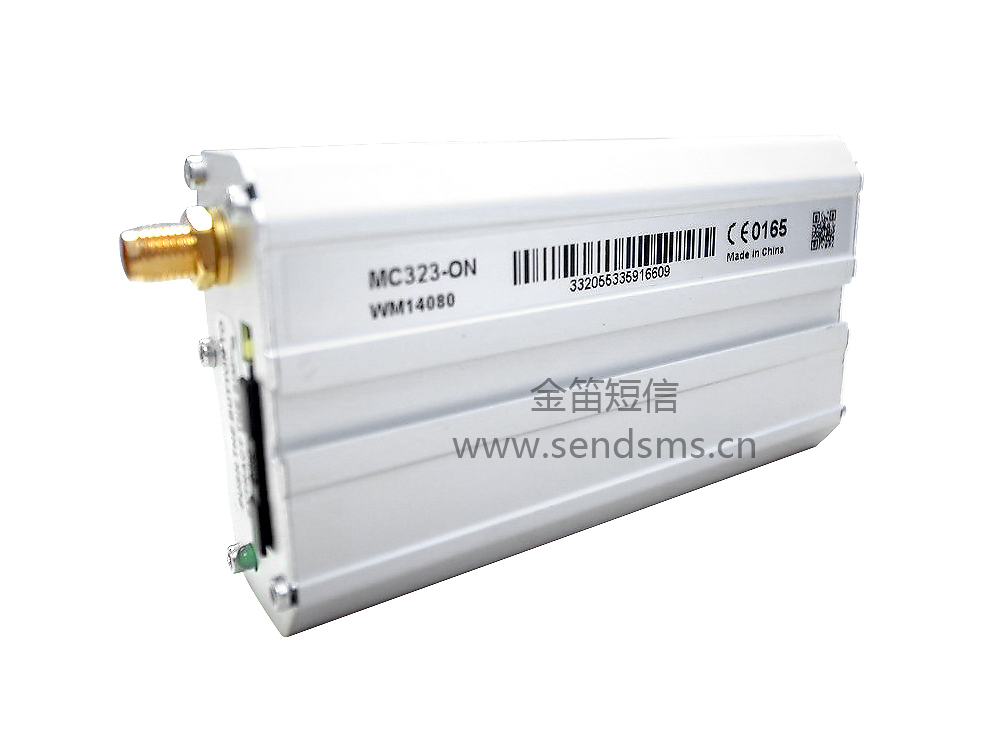

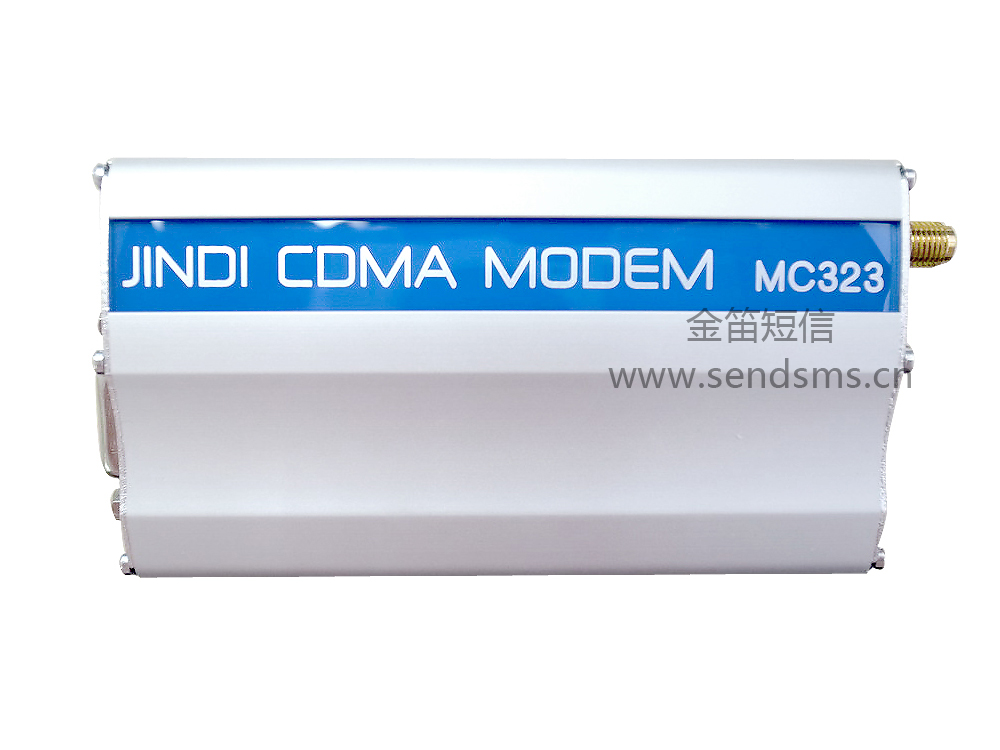

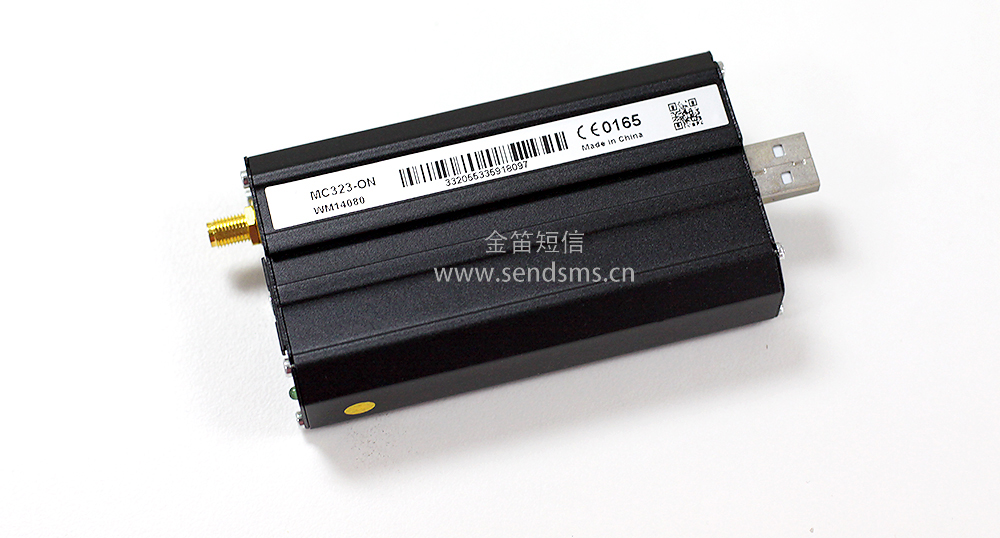

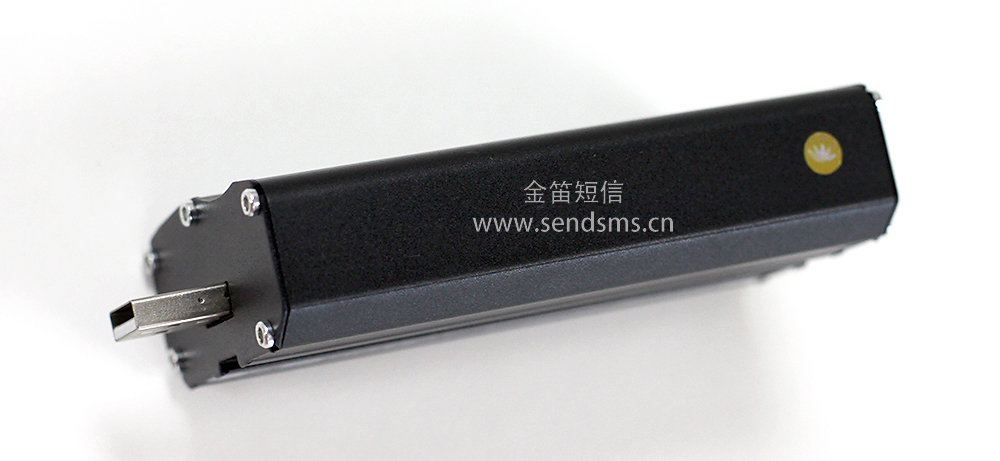

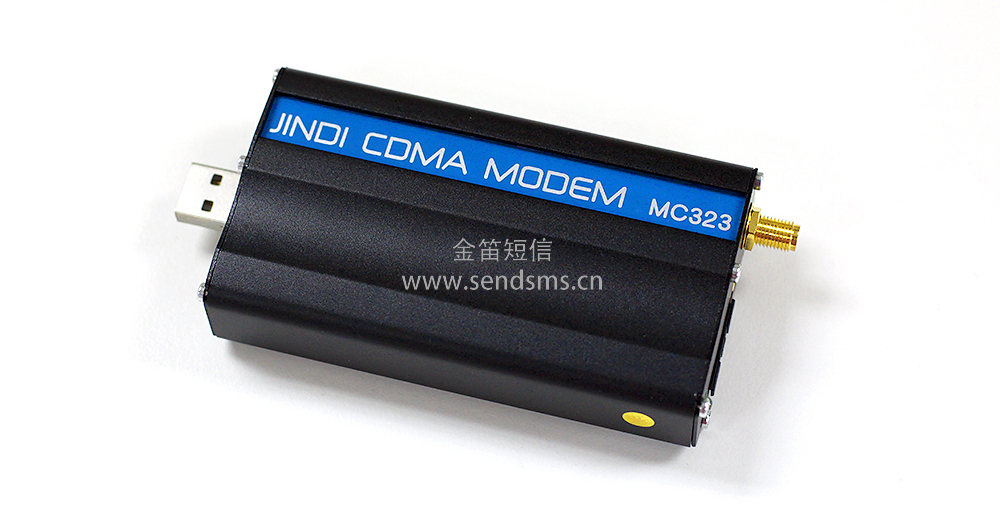

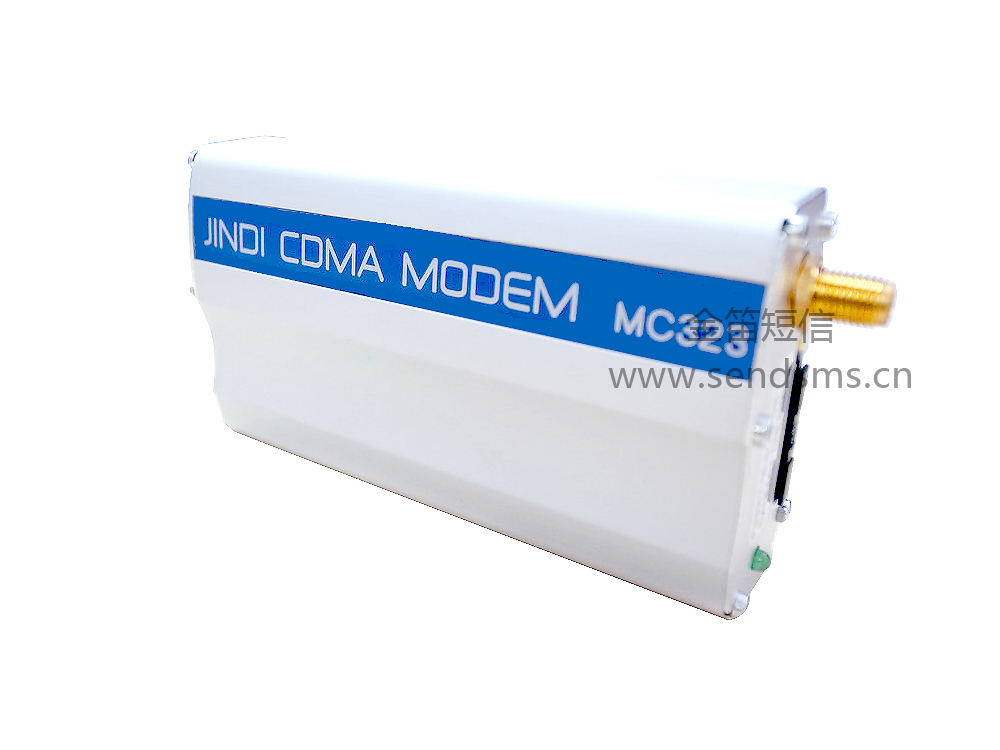

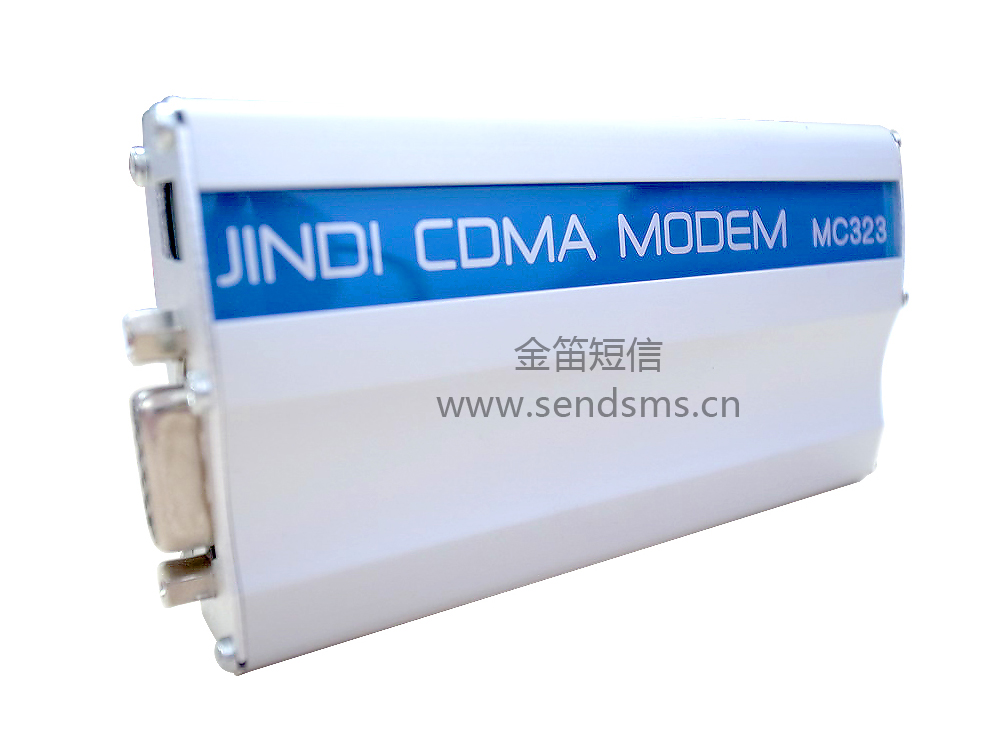

Jindi CDMA MODEM MC323
      Jindi CDMA MODEM MC232 is assembled with the HUAWEI MC323 chip, and it has two optional interfaces, RS232 and USB. It can be connected directly with RS232 or USB of PC. Also it can control SMS through AT commands. This modem only support CDMA-2000 1X network of China Telecom, and it’s applicable to all main operating systems, including windows 2003 /xp/2008 /win7/win8 /win8.1 /win2012 and linux. The main applications is as follows:
     · SMS monitoring, SMS alarm, SMS notification.
     · Wireless data transmission.
     · Voice service.
Specifications And Parameters
Function Features
Interfaces and Accessories
Essential Features Product Features CDMA Data Features
· Support AT commands, support TCP/IP UDP and PPP protocol
· 153Kbps full duplex transmissibility
· Support AT commands setting
· 2W RF power output
· High sensitivity antenna
· Power supply voltage 5V~16V
· Enter power-save mode automatically
· Designed for voice, SMS, data and CDMA wireless internet access
· 153Kbps full duplex transmissibility
· Support AT demand setting
· 2W RF power output
· High sensitivity antenna
· Power supply voltage 5V~16V
· Enter power-save mode automatically
· Data feature
· USB interface
· Voice interface, send and receive voice through it when calls coming
· Enter power-save mode automatically
· 3V UIM card holder
